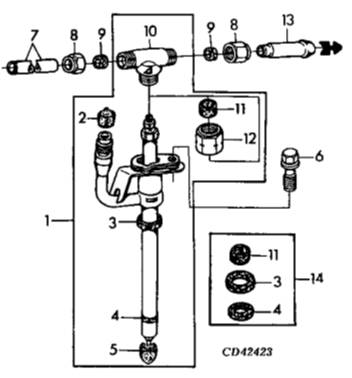

John Deere約翰迪爾強鹿6068 3.9-6.8L噴油器零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. D T REMARKS
1 RE36935 INJECTION NOZZLE 4 X (MARKED 28480)
RE36939 INJECTION NOZZLE 4 X (MARKED 28484)
2 .................. PLUG NA X X
3 .................. PACKING 1 X TK 3MM, ORD RE65201
.................. PACKING 1 X TK 1.9MM, ORD RE64292
4 .................. WASHER 1 X ORD RE65201
.................. WASHER 1 X ORD RE64292
5 .................. PLUG NA X X
6 R101201 CAP SCREW 3 X X
7 R66090 TUBE 2 X LGTH 108MM
R66090 TUBE 3 X LGTH 108MM
8 R123593 NUT 8 X X 1/2"-24UNS
9 R51936 PACKING 8 X X
10 R71963 TEE FITTING 1 X
11 .................. WASHER 1 X ORD RE65201
.................. WASHER 1 X ORD RE64292
12 R79604 TUBE NUT 1 X X
13 R500731 HOSE FITTING 1 X X REAR
14 RE65201 O-RING KIT AR X
RE64292 O-RING KIT AR X

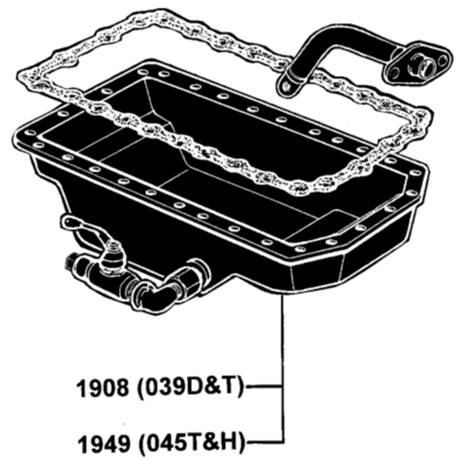

John Deere約翰迪爾強鹿6068 3.9-6.8L油底殼零件圖冊

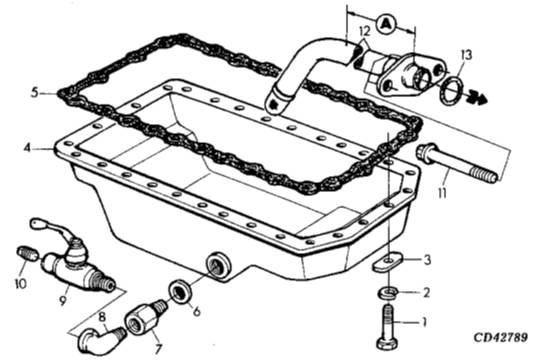

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS
1 19H2676 CAP SCREW 28 X 3/8" X 1", (SAE 8)
2 12H304 LOCK WASHER 28 X 3/8"
3 T30726 STRAP 28 X
4 RE57482 OIL PAN 1 X
5 R123352 GASKET 1 X
6 R120247 SEALING WASHER 1 X COPPER
7 R124128 ADAPTER 1 X M22 X 1.5MM X 1/2"-14NPT
8 15H602 ELBOW FITTING 1 X 1/2"
9 RE503101 SHUT-OFF VALVE 1 X
10 15H584 PIPE PLUG 1 X 1/2"
11 R59409 CAP SCREW 2 X LGTH 102MM (SAE 8)
12 RE64211 OIL PUMP INTAKE 1 X A = 114MM, KIT, W/ INSTRUCTIONS
13 R61871 O-RING 1 X

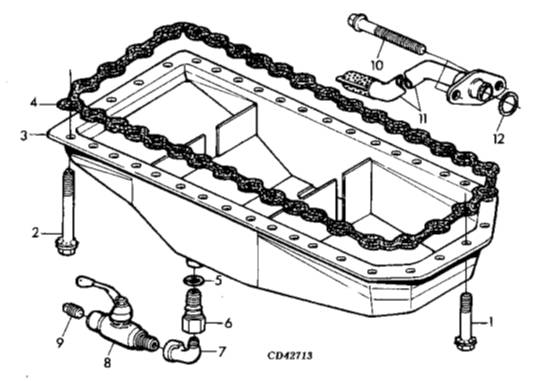

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS
1 19M7866 SCREW 6 X M8 X 20, (10.9) ONE TIME USAGE
2 19M7902 SCREW 22 X M8 X 16, (12.9) ONE TIME USAGE
3 .................. OIL PAN 1 X MARKED RE500612, ORD RE503224
4 R500349 GASKET 1 X
5 51M7045 O-RING 1 X 19.300 X 2.200 MM
6 R501657 ADAPTER 1 X M22 X 1.5 X 1/2"-14NPT
7 15H602 ELBOW FITTING 1 X 1/2"
8 RE503101 SHUT-OFF VALVE 1 X 1/2"
9 15H584 PIPE PLUG 1 X 1/2"
10 19M8986 SCREW 2 X M8 X 100, (10.9)
11 RE71143 OIL PUMP INTAKE 1 X
12 R61871 O-RING 1 X
