John Deere約翰迪爾強鹿柴油機平衡器軸襯套的測量與標準值參數

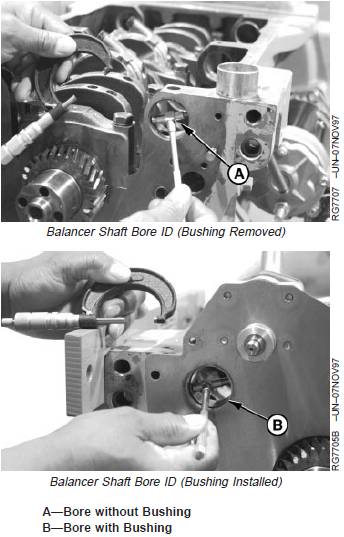

1. Visually inspect and measure balancer shaft bushing ID with bushing removed (A) and with bushing installed(B).If bushing is worn or not within specification, install new bushings. (See REMOVE AND INSTALL

BALANCER SHAFT BUSHINGS in Group 050.)

2. If necessary to replace bushing, remove bushing and measure bore diameter in block. If bore diameter in block is not within specification, install a new cylinder block.

Specification

Balancer Shaft Bore in Block(Bushing Removed)—ID 43.262—43.288 mm (1.7032—1.7042 in.)

Balancer Shaft Bushing—ID 40.177—40.237 mm (1.5818—1.5841 in.)

Balancer Shaft

Journal-to-Bushing—Clearance 0.016—0.102 mm (0.0006—0.0040 in.)
