渦輪增壓器和油路

John Deere約翰迪爾強鹿6068  6.8L柴油發動機渦輪增壓器和油路零件圖冊

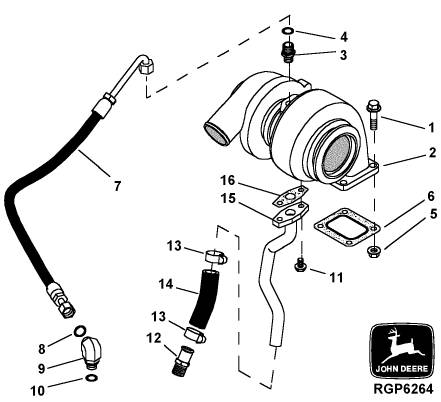

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 19M8162 CAP SCREW 4 X X X M10 X 40

2 RE60074 TURBOCHARGER 1 X X X (A)

RE26409 KIT 1 X X X

3 M87733 ADAPTER 1 X X X

4 R63548 O-RING 1 X X X

5 14M7296 FLANGE NUT 4 X X X M10

6 R123572 GASKET 1 X X X

7 RE503208 OIL LINE 1 X X X (SUB FOR RE59922)

8 T77613 O-RING 1 X X X

9 38H5154 ELBOW FITTING 1 X X X (INCLUDES 51M7042)

10 51M7042 O-RING 2 X X X 13.300 X 2.200 MM

11 19M7866 SCREW 2 X X X M8 X 20

12 RE54885 HOSE FITTING 1 X X X

13 RE65978 CLAMP 2 X X X

14 .................. COMPRESSED AIR HOSE 1 X X X (MAKE FROM R120013)

15 RE59438 OIL LINE 1 X X X

16 R123570 GASKET 1 X X X

(A) REMANUFACTURED

ECHANGE STANDARD

GENERALUEBERHOLT

RIFATTO

REFABRICADOR POR

RENOVERAD

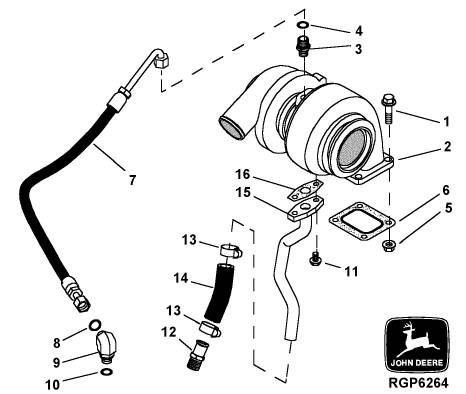

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS

1 19M8162 CAP SCREW 4 X M10 X 40

2 RE60074 TURBOCHARGER 1 X (A)

RE26409 KIT 1 X

3 M87733 ADAPTER 1 X

4 R63548 O-RING 1 X

5 14M7296 FLANGE NUT 4 X M10

6 R123572 GASKET 1 X

7 RE503208 OIL LINE 1 X (SUB FOR RE59922)

8 T77613 O-RING 1 X

9 38H5154 ELBOW FITTING 1 X (INCLUDES 51M7042)

10 51M7042 O-RING 2 X 13.300 X 2.200 MM

11 19M7866 SCREW 2 X M8 X 20

12 RE54885 HOSE FITTING 1 X

13 RE65978 CLAMP 2 X

14 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)

15 RE59438 OIL LINE 1 X

16 R123570 GASKET 1 X

(A) REMANUFACTURED

ECHANGE STANDARD

GENERALUEBERHOLT

RIFATTO

REFABRICADOR POR

RENOVERAD

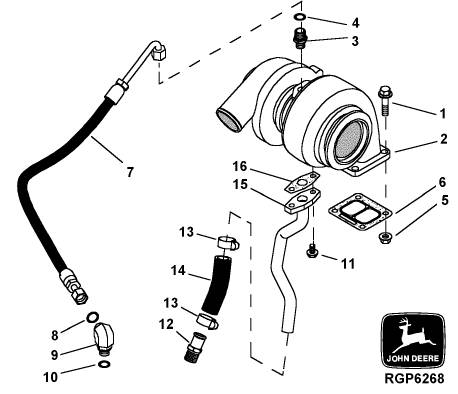

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 19M8162 CAP SCREW 4 X X M10 X 40

2 RE60075 TURBOCHARGER 1 X X (A)

RE26409 KIT 1 X X

3 M87733 ADAPTER 1 X X

4 R63548 O-RING 1 X X

5 14M7296 FLANGE NUT 4 X X M10

6 R123572 GASKET 1 X X

7 RE501260 OIL LINE 1 X X (SUB FOR RE59468)

8 T77613 O-RING 1 X X

9 38H5154 ELBOW FITTING 1 X X (INCLUDES 51M7042)

10 51M7042 O-RING 2 X X 13.300 X 2.200 MM

11 19M7866 SCREW 2 X X M8 X 20

12 RE54885 HOSE FITTING 1 X X

13 RE65978 CLAMP 2 X X

14 .................. COMPRESSED AIR HOSE 1 X X (MAKE FROM R120013)

15 RE59438 OIL LINE 1 X X

16 R123570 GASKET 1 X X

(A) REMANUFACTURED

ECHANGE STANDARD

GENERALUEBERHOLT

RIFATTO

REFABRICADOR POR

RENOVERAD

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 19M7785 SCREW 4 X M10 X 25

2 RE60075 TURBOCHARGER 1 X (A)

RE26409 KIT 1 X

3 M87733 ADAPTER 1 X

4 R63548 O-RING 1 X

5 R123572 GASKET 1 X

6 .................. FLANGE NUT NA X

7 RE503209 HYDRAULIC HOSE 1 X (SUB FOR RE55514)

8 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)

9 19M7866 SCREW 2 X M8 X 20

10 R123570 GASKET 1 X

11 RE60003 OIL LINE 1 X

12 R63548 O-RING 1 X

13 T112804 ELBOW FITTING 1 X

14 51M7045 O-RING 1 X 19.300 X 2.200 MM

15 RE60010 ELBOW FITTING 1 X (INCLUDES 51M7045)

16 P40098 ADAPTER 1 X

17 RE65978 CLAMP 2 X (SUB FOR RE62322)

(A) REMANUFACTURED

ECHANGE STANDARD

GENERALUEBERHOLT

RIFATTO

REFABRICADOR POR

RENOVERAD

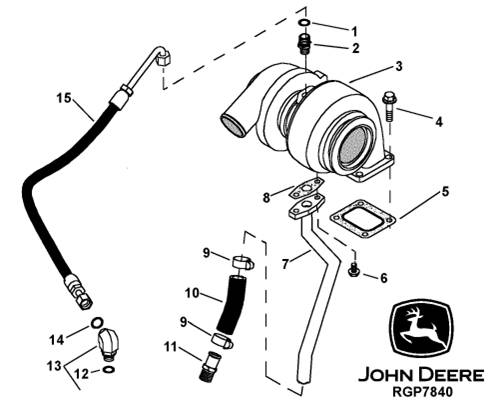

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R63548 O-RING 1 X

2 M87733 ADAPTER 1 X

3 RE60074 TURBOCHARGER 1 X (A)

RE26409 KIT 1 X

4 19M7785 SCREW 4 X M10 X 25

5 R123572 GASKET 1 X

6 19M7866 SCREW 2 X M8 X 20

7 RE506235 FUEL LINE 1 X (SUB FOR RE504545)

8 R123570 GASKET 1 X

9 RE65978 CLAMP 2 X

10 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)

11 RE54885 HOSE FITTING 1 X

12 51M7042 O-RING 1 X 13.300 X 2.200 MM

13 38H5154 ELBOW FITTING 1 X

14 T77613 O-RING 1 X

15 RE503212 HYDRAULIC HOSE 1 X

(A) REMANUFACTURED

ECHANGE STANDARD

GENERALUEBERHOLT

RIFATTO

REFABRICADOR POR
