John Deere約翰迪爾強鹿6068  6.8L柴油發動機手油泵零件圖冊

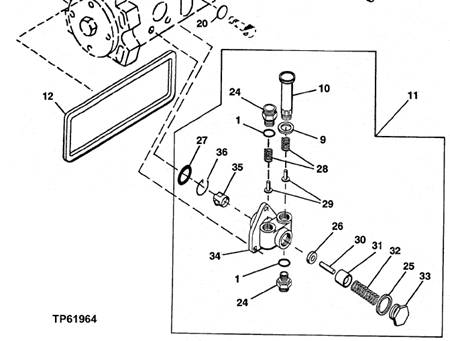

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 51M7041 O-RING 3 X 11.300 X 2.200 MM

2 R64995 RETAINER 1 X

3 R135163 LEVER 1 X

4 R64989 LOCK NUT 1 X

5 R135874 LEVER NA X

6 R65437 CAP SCREW 1 X

7 R64967 PRY BAR 1 X

8 R64969 SCREW 1 X

9 R64854 WASHER 1 X

10 RE500376 HAND PRIMER 1 X

11 RE500375 FUEL PUMP 1 X (A)

12 R500220 GASKET 1 X

13 RE500374 CONTROL VALVE 1 X

14 R64857 WASHER 1 X

15 RE502173 FITTING 1 X

16 51M7039 O-RING 2 X

17 R64968 SHAFT KEY 1 X

18 R73885 SCREW 1 X

19 R77536 JAW 1 X

20 R78773 PACKING 1 X

21 R73864 O-RING 1 X

22 R73821 O-RING 6 X

23 R64997 O-RING 1 X

24 RE60031 FITTING 2 X

25 R64861 WASHER 1 X

26 R502362 SEAL 1 X

27 R64927 O-RING 1 X

28 .................. SPRING 2 X

29 .................. VALVE 2 X

30 .................. SPINDLE 1 X

31 .................. PLUNGER 1 X

32 .................. SPRING 1 X

33 .................. PIPE PLUG 1 X

34 .................. HOUSING 1 X

35 .................. ROLLER 1 X

36 .................. SNAP RING 1 X

(A) FUEL TRANSFER PUMP

POMPE DE TRANSFERT DE CARBURANT

KRAFTSTOFFOERDERPUMPE

POMPA DI ALIMENTAZIONE

BOMBA DE TRANSFERENCIA DE COMBUSTIBLE

BRAENSLEPUMP
