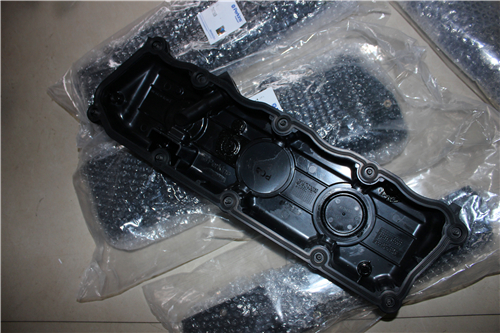

Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋

Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋供應商，Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋技術價格規格咨詢服務，Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋零配件供應，Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋售后服務中心，Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋，Perkins珀金斯900 3.152柴油發動機37188571搖臂室蓋詳細的技術參數，
產品咨詢

詳細描述

項目   零配件號碼    最新件號   描述

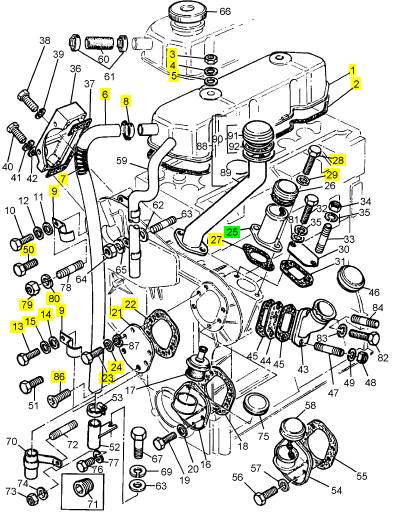

    1   37188571   1   37188571   搖臂室蓋

    2   36811115   1   36811115   密合墊 -CYL。 冒口蓋

    3   0576102    2   0576102    螺帽

    4   3314 P004  2   3314 P004  墊圈

    4   0920003    2   0920003    墊圈

    5   3381 A003  2   3381 A003  墊圈

    5   0920302    2   0920302    墊圈

    6   33872516   1   33872516   管 -呼吸者

    7   31754118   1   31754118   彈簧

    8   21825195   1   21825195   夾

    9   36561129   2   36561129   夾

    13  0748354    1   0748354    螺旋

    14  0920002    1   0920002    墊圈

    15  0920052    1   0920052    墊圈

    21  3623 H005  1   3623 H005  板

    22  36862512   1   36862572   密合墊

    23  2233103    4   0748352    螺旋

    24  2411151    6   2411151    墊圈

    25  35784123   1   檢查歷史   填隙料

    27  36837413   1   36837415   密合墊

    28  2183204    2   2183204    螺旋

    29  0920053    2   0920053    墊圈

    50  2233204    1   2233204    螺旋

    79  0576002    1   0576002    螺帽

    80  0920053    1   0920053    墊圈

    86  2227117    6   2227117    螺旋

    項目   零配件號碼    最新件號   描述

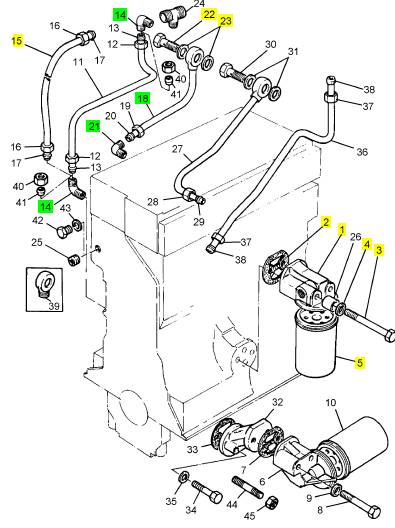

    1   37764251   1   37764251   濾油器冒口

    2   0490514    1   36813161   密合墊 - 濾油器的冒口

    3   0096443    2   0096443    螺拴

    4   33115129   2   33115129   墊圈

    5   2654408    1   2654408    濾油器

    14  0201047    2   0201047    連接

    15  35352404   1   35352404   油管

    18  35568109   1   35568109   油管

    21  0201047    1   0201047    連接

    22  0095350    1   0095350    螺拴

    23  2411118    2   2411118    墊圈
